1. General Features:

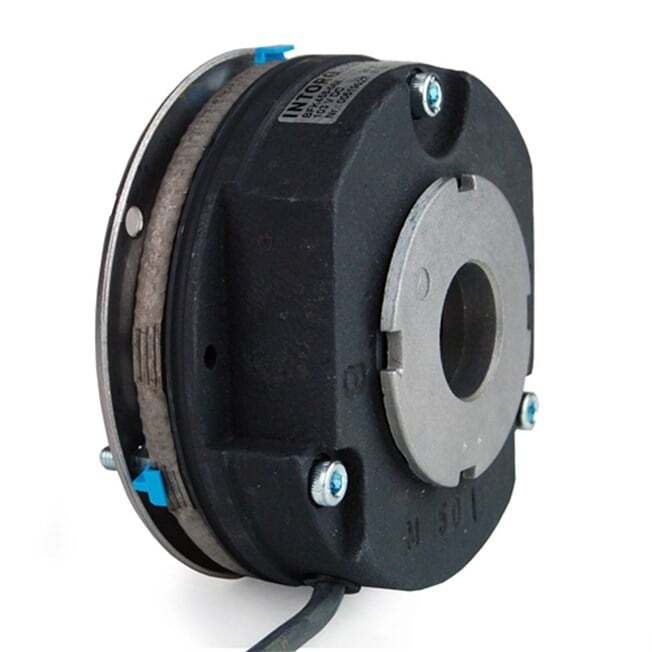

Type: Electromagnetic brake (failsafe braking)
Application: Industrial machinery, lifting systems, conveyors, and more.
Function: Provides reliable, failsafe braking with high torque.
Design: Compact and robust design for high efficiency in stopping motion.
2. Technical Specifications:
Torque Range: Typically from 10 to 300 Nm, depending on the model and requirements.
Operating Voltage:
Common voltages are 24V DC, 48V DC, or 230V AC, depending on the specific application.
Brake Type:
Spring-applied, electromagnetic brake which engages when the power is turned off and releases when current is applied.
Duty Cycle:
Continuous operation with the ability to handle dynamic braking applications.
3. Physical Dimensions:
Outer Diameter (OD): Usually around 150 mm to 250 mm (approximate size, specific to model).
Inner Diameter (ID): Fits the shaft size, typically ranging from 30 mm to 80 mm.
Height: Approx. 50 mm to 120 mm, depending on the specific version.
4. Materials:
Housing: Typically made of cast iron or aluminum alloy for durability.
Friction Material: Friction pads are made of high-quality materials to ensure long life and effective braking.
5. Performance Characteristics:
Braking Time: Fast response time for efficient stopping.
Operating Temperature: Can generally withstand operating temperatures ranging from -20C to +40C.
Power Supply: Typically powered by DC voltage or AC voltage, with specific models for different industrial needs.
6. Mounting and Integration:
Mounting: Designed for easy installation on a variety of industrial equipment, typically flange-mounted or shaft-mounted.
Connection Type: Often uses screw terminals for electrical connections, ensuring safe and secure installation.
7. Safety Features:
Failsafe: The brake engages automatically in case of power failure, providing added safety for operators and machinery.
Overload Protection: Built-in features prevent the brake from being damaged under heavy load conditions.
8. Applications:
Hoists: Used in overhead lifting applications to prevent over travel and ensure load stability.
Conveyor Systems: Provides stopping power to conveyors to control motion.
Automated Machinery: Used in various automation systems for precision stopping.
Advantages:
High Efficiency: Provides consistent and efficient braking with minimal energy consumption.
Long Life: The brake is designed for longevity, reducing the need for frequent replacements.
Compact Design: Small form factor allows it to be used in constrained spaces.
Safety: Failsafe operation ensures automatic engagement during power loss.
