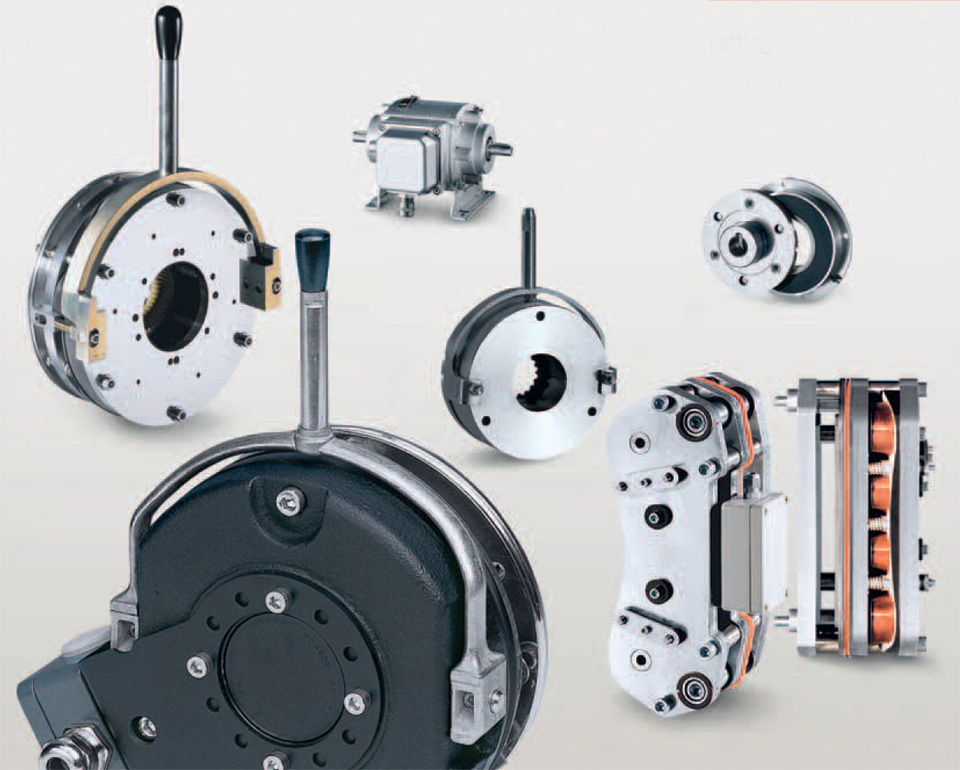

INTORQ BRAKE bfk458 12n

Product Description

Key Specifications:

Brake Type:

Electromagnetic brake (failsafe, spring-applied)

Nominal Voltage:

24V DC or other specified voltage options (depending on configuration)

Brake Torque:

Varies based on the specific model configuration, typically ranging from 4 Nm to 500 Nm or higher.

Inner Diameter (ID):

Typically, around 100 mm to 250 mm (depending on model and application)

Outer Diameter (OD):

Typically, around 200 mm to 400 mm (varies with the size and specific variant)

Operating Temperature:

-20C to +40C (standard range)

Can operate in environments with higher or lower temperatures based on special configurations.

Brake Disc Material:

Steel or cast iron with friction material designed for long service life.

Power Consumption:

Approx. 30W (depends on the exact brake size and voltage used)

Brake Engagement:

Spring-applied, electromagnetically released.

Mounting Type:

It can be mounted directly on the shaft or integrated into other systems, depending on the

application.

Duty Cycle:

Continuous or intermittent use depending on specific needs.

Protection Class:

Typically, IP 54 (protection against dust and water splashes), but higher ratings are available.
